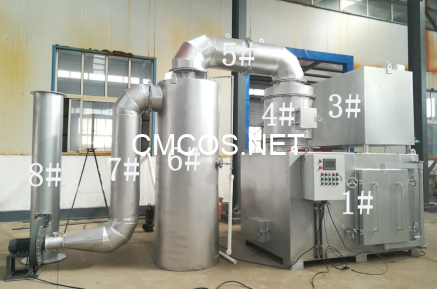

Item |
Serie No. |
Part Name |
Packing List |
1# |
Incinerator Mainbody |
|
2# |
Oil Tank(Deposit) |
|
3# |
Oil Tank(Daily) |
|
4# |
Chimney(Vertical,High Temperature) |
|
5# |
Chimney(Horizontal,High Temperature) |
|
6# |
Wet Scrubber |
|
7# |
Chimney(S shape) |
|
8# |
Chimney(Below) |
|
9# |
Chimney(Top) |
Hospital Incinerators for Medical Waste Destruction
SN |
Item |
Specification |
1 |
Model |
TS100 |
2 |
Burning Rate |
Ave.50-100Kgs/Hour |
3 |
Feeding Capacity |
Ave.200Kgs/Feeding |
4 |
Primary Chamber |
1000 Liters |
5 |
Secondary Chamber |
540 Liters |
6 |
Chimney |
Yes |
7 |
Wet Scrubber |
Yes |
8 |
Wet Scrubber Parameter |
Dia. 100cm Hight 2500cm |
9 |
Feeding Model |
Manual |
10 |
Power |
380V 3P 50Hz |
11 |
Power |
6.0 Kw |
12 |
Fuel Type |
Diesel Oil |
13 |
Burner |
Italy |
14 |
Oil Consumption (Diesel Oil) |
Average 20.4 Kgs/Hour |
15 |
Internal Dimensions Primary Chamber |
120 x 100 x 90 cm |
16 |
External Dimensions (Main Body) |
270 x 190 x 170cm |
17 |
Temperature Monitor |
Yes |
18 |
Oil Tank (Daily) |
1.8M3 |
19 |
Oil Tank(Deposit) Parameter |
10M3, Dia. 200cm Length 3500cm |
20 |
Feeding Door |
80 x 60cm |
21 |
Chimney |
6.0 M |
22 |
Chimney Material |
S.Steel |
23 |
Weight |
Ave.8500Kgs |
24 |
1st. Chamber Temperature |
800℃–1000℃ |
25 |
2nd. Chamber Temperature |
1000℃-1200℃ |
26 |
Residency Time |
2Sec. |
